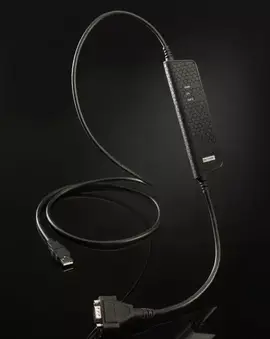

Kvaser Hybrid Pro CAN/LIN

SKU: 01288-2

£540

ADD TO CART

QUANTITY

DESCRIPTION
TECH SPECS
DOWNLOADS

Kvaser Hybrid Pro CAN/LIN is a flexible, single channel interface that can be assigned as either CAN, CAN/FD or LIN. This makes the Kvaser Hybrid Pro CAN/LIN a must-have ’universal interface’ for every engineer involved in automotive communications!



The Pro version offers advanced features such as support for Silent Mode, Error Frame Detection and Generation and Kvaser MagiSync™ automatic clock synchronization. Silent Mode allows you to listen in on a CAN bus without injecting new information that other nodes will detect, whilst Kvaser MagiSync™ synchronizes timestamps across multiple Kvaser MagiSync™-enabled devices without needing extra wires.



Major Features

  • Hybrid USB CAN/LIN interface with a 9-pin D-SUB.
  • t programming allows users to set up complex triggers and filters on the device, perform ECU simulation or transform your device into a gateway/bridge.
  • Supports CAN FD, up to 5 Mbit/s (with proper physical layer).
  • Supports High Speed CAN (ISO 11898-2) up to 1Mbit/s and LIN 2.2A (ISO 17987 Part 1-7) up to 20 kbit/s.
  • Capable of sending up to 20000 messages per second.
  • Quick and easy plug-and-play installation.
  • Supports CAN 2.0 A and CAN 2.0 B active.
  • USB powered (bus V+ reference required for LIN).
  • Kvaser MagiSync – automatic time synchronization.
  • LED lights alert user to device status.
  • Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet.
  • Supplied with Kvaser CANlib and Kvaser LINlib, free software APIs that are common to all Kvaser hardware and enable the channels to be configured intuitively and fast.
  • Extended operating temperature range from -40 to 85 °C.

Warranty

  • 2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.

Support

Software

  • Documentation, software and drivers can be downloaded for free at kvaser.com/downloads.
  • Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
  • All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
  • J2534 Application Programming Interface available.
  • RP1210A Application Programming Interface available.
  • On-line documentation in Windows HTML-Help and Adobe Acrobat format.

Kvaser Hybrid Pro CAN/LIN is a flexible, single channel interface that can be assigned as either CAN, CAN/FD or LIN. This makes the Kvaser Hybrid Pro CAN/LIN a must-have ’universal interface’ for every engineer involved in automotive communications!



The Pro version offers advanced features such as support for Silent Mode, Error Frame Detection and Generation and Kvaser MagiSync™ automatic clock synchronization. Silent Mode allows you to listen in on a CAN bus without injecting new information that other nodes will detect, whilst Kvaser MagiSync™ synchronizes timestamps across multiple Kvaser MagiSync™-enabled devices without needing extra wires.



Major Features

  • Hybrid USB CAN/LIN interface with a 9-pin D-SUB.
  • t programming allows users to set up complex triggers and filters on the device, perform ECU simulation or transform your device into a gateway/bridge.
  • Supports CAN FD, up to 5 Mbit/s (with proper physical layer).
  • Supports High Speed CAN (ISO 11898-2) up to 1Mbit/s and LIN 2.2A (ISO 17987 Part 1-7) up to 20 kbit/s.
  • Capable of sending up to 20000 messages per second.
  • Quick and easy plug-and-play installation.
  • Supports CAN 2.0 A and CAN 2.0 B active.
  • USB powered (bus V+ reference required for LIN).
  • Kvaser MagiSync – automatic time synchronization.
  • LED lights alert user to device status.
  • Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet.
  • Supplied with Kvaser CANlib and Kvaser LINlib, free software APIs that are common to all Kvaser hardware and enable the channels to be configured intuitively and fast.
  • Extended operating temperature range from -40 to 85 °C.

Warranty

  • 2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.

Support

  • Free Technical Support on all products available by contacting support@kvaser.com.

Software

  • Documentation, software and drivers can be downloaded for free at kvaser.com/downloads.
  • Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
  • All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
  • J2534 Application Programming Interface available.
  • RP1210A Application Programming Interface available.
  • On-line documentation in Windows HTML-Help and Adobe Acrobat format.

Kvaser Hybrid Pro CAN/LIN

SKU: 01288-2
£540.00Price
