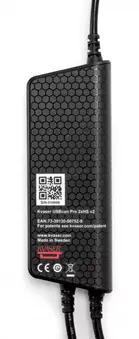

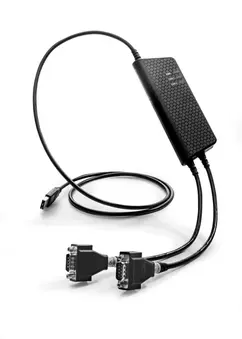

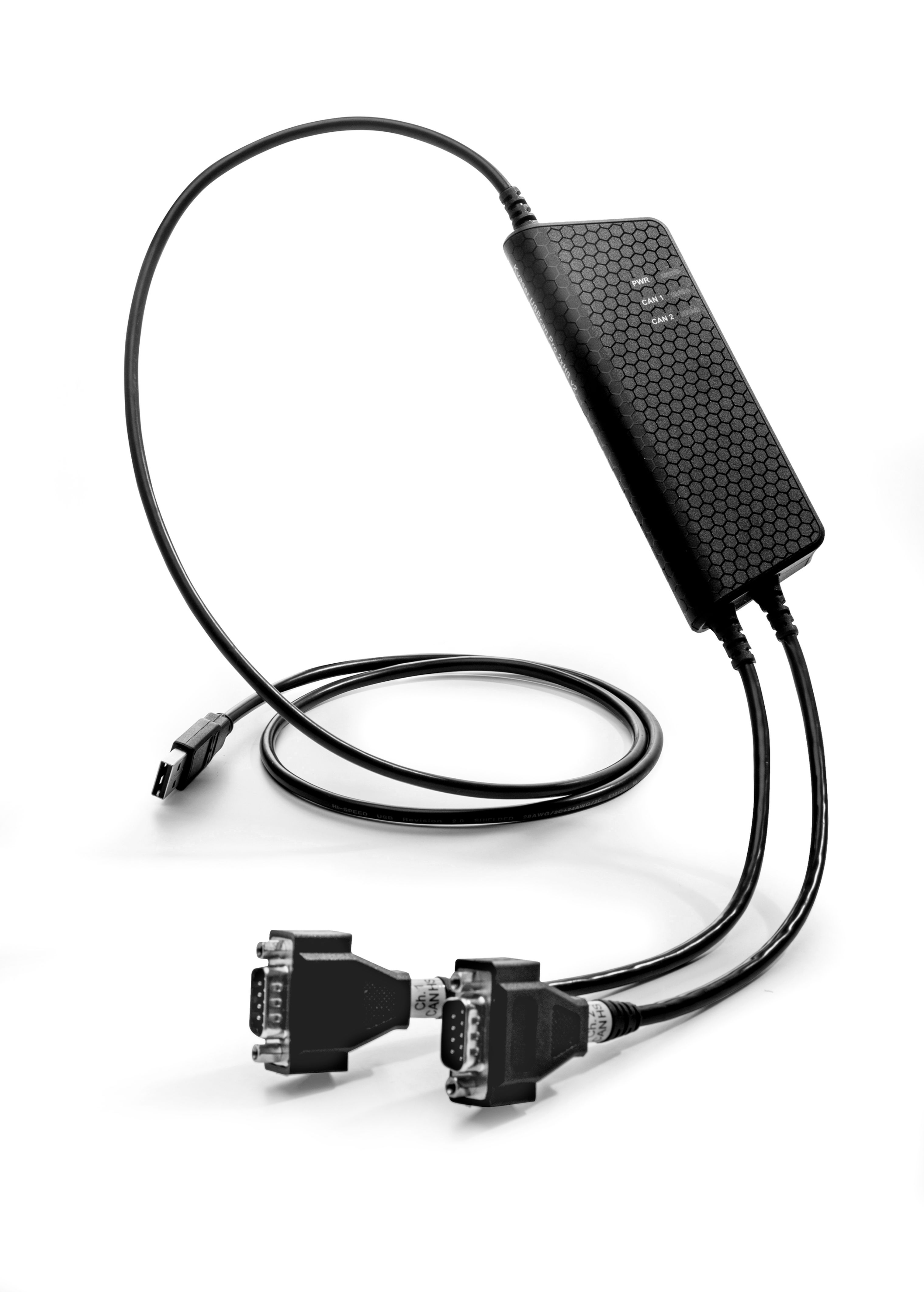

Kvaser USBcan Pro 2xHS v2

SKU: 00752-9

£800

ADD TO CART

QUANTITY

DESCRIPTION
TECH SPECS
DOWNLOADS

The USBcan Pro 2xHS v2 is a USB to dual-channel CAN or CAN FD interface with scripting capability. With a standard USB connector and two high-speed CAN channels with ISO 11898-2 compliant CAN transceivers in two separate 9-pin D-SUB CAN connectors, it is high-performance, yet compact, and can be used as a simple dual-channel interface to connect two high speed CAN buses to a PC or mobile computer, or can be programmed to do more. The Pro version is shipped with Kvaser TRX, a lightweight development environment that lowers the bar when starting out programming the device.



Major Features

  • USB CAN interface with Kvaser t programmability.
  • Supports CAN FD, up to 8 Mbit/s (with correct physical layer implementation).
  • High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
  • Supports both 11-bit (CAN2.0A) and 29- bit (CAN 2.0B active) identifiers.
  • Power is taken from the USB bus.
  • Galvanic isolation.
  • Quick and easy plug-and-play installation.
  • Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet.
  • Kvaser MagiSync provides automatic time synchronization between several PC-to- bus interfaces connected to the same PC.
  • Programming functionality to support interface mode e.g. optimize protocol handling, pre-filter CAN messages directly on the interface or simulate missing hardware.
  • Simultaneous operation of multiple devices.
  • Support for SocketCAN, see elinux.org for details.

Warranty

  • 2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.

Support

Software

  • Documentation, software and drivers can be downloaded for free at kvaser.com/downloads.
  • Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
  • All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
  • J2534 Application Programming Interface available.
  • RP1210A Application Programming Interface available.
  • On-line documentation in Windows HTML-Help and Adobe Acrobat format.
Kvaser USBcan Pro 2xHS v2
The USBcan Pro 2xHS v2 is a USB to dual-channel CAN or CAN FD interface with scripting capability. With a standard USB connector and two high-speed CAN channels with ISO 11898-2 compliant CAN transceivers in two separate 9-pin D-SUB CAN connectors, it is high-performance, yet compact, and can be used as a simple dual-channel interface to connect two high speed CAN buses to a PC or mobile computer, or can be programmed to do more. The Pro version is shipped with Kvaser TRX, a lightweight development environment that lowers the bar when starting out programming the device.

Major Features
  • USB CAN interface with Kvaser t programmability.
  • Supports CAN FD, up to 8 Mbit/s (with correct physical layer implementation).
  • High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
  • Supports both 11-bit (CAN2.0A) and 29- bit (CAN 2.0B active) identifiers.
  • Power is taken from the USB bus.
  • Galvanic isolation.
  • Quick and easy plug-and-play installation.
  • Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet.
  • Kvaser MagiSync provides automatic time synchronization between several PC-to- bus interfaces connected to the same PC.
  • Programming functionality to support interface mode e.g. optimize protocol handling, pre-filter CAN messages directly on the interface or simulate missing hardware.
  • Simultaneous operation of multiple devices.
  • Support for SocketCAN, see elinux.org for details.
Warranty
  • 2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.
Support
  • Free Technical Support on all products available by contacting support@kvaser.com.
Software
  • Documentation, software and drivers can be downloaded for free at kvaser.com/downloads.
  • Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
  • All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
  • J2534 Application Programming Interface available.
  • RP1210A Application Programming Interface available.
  • On-line documentation in Windows HTML-Help and Adobe Acrobat format.

Kvaser USBcan Pro 2xHS v2

SKU: 00752-9
£800.00Price
