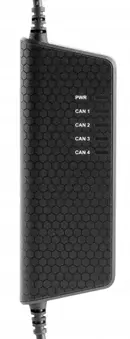

The Kvaser USBcan Pro 4xHS is an advanced, portable multi-channel CAN/CAN FD to USB real time interface that handles transmission and reception of standard and extended CAN messages on the CAN bus with a high time stamp precision. Features include t programming and MagiSync™, which makes it possible to synchronise time stamps across multiple Kvaser MagiSync™-enabled devices without requiring extra wires.

The Kvaser USBcan Pro 4xHS USB to quad channel CAN interface is the Pro version of the Kvaser USBcan Light 4xHS (00831-1), a compact, reliable and cost-effective means of connecting four high speed CAN buses to a PC or mobile computer.

Major Features

• Multi-channel USB CAN interface with Kvaser t programmability.

• 20 000 msg/s per channel, each timestamped with a resolution of 1 μs.

• Kvaser MagiSync™ – automatic time synchronization.

• Supports CAN FD, up to 8 Mbit/s (with correct physical layer implementation).

• Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.

• Supports silent mode for analysis tools – listen to the bus without interfering.

• High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.

• Industrial grade temperature range, −40 oC to +85 oC.

• Galvanic isolation.

• Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet.

• Simultaneous operation of multiple devices.

• Power is taken from the USB bus.

• Includes a 4-channel breakout cable.

Warranty

• 2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.

Support

• Free Technical Support on all products available by contacting support@kvaser.com.

Software

• Documentation, software and drivers can be downloaded for free at kvaser.com/downloads.

• Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.

• All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!

• J2534 Application Programming Interface available.

• RP1210A Application Programming Interface available.

• On-line documentation in Windows HTML-Help and Adobe Acrobat format.
